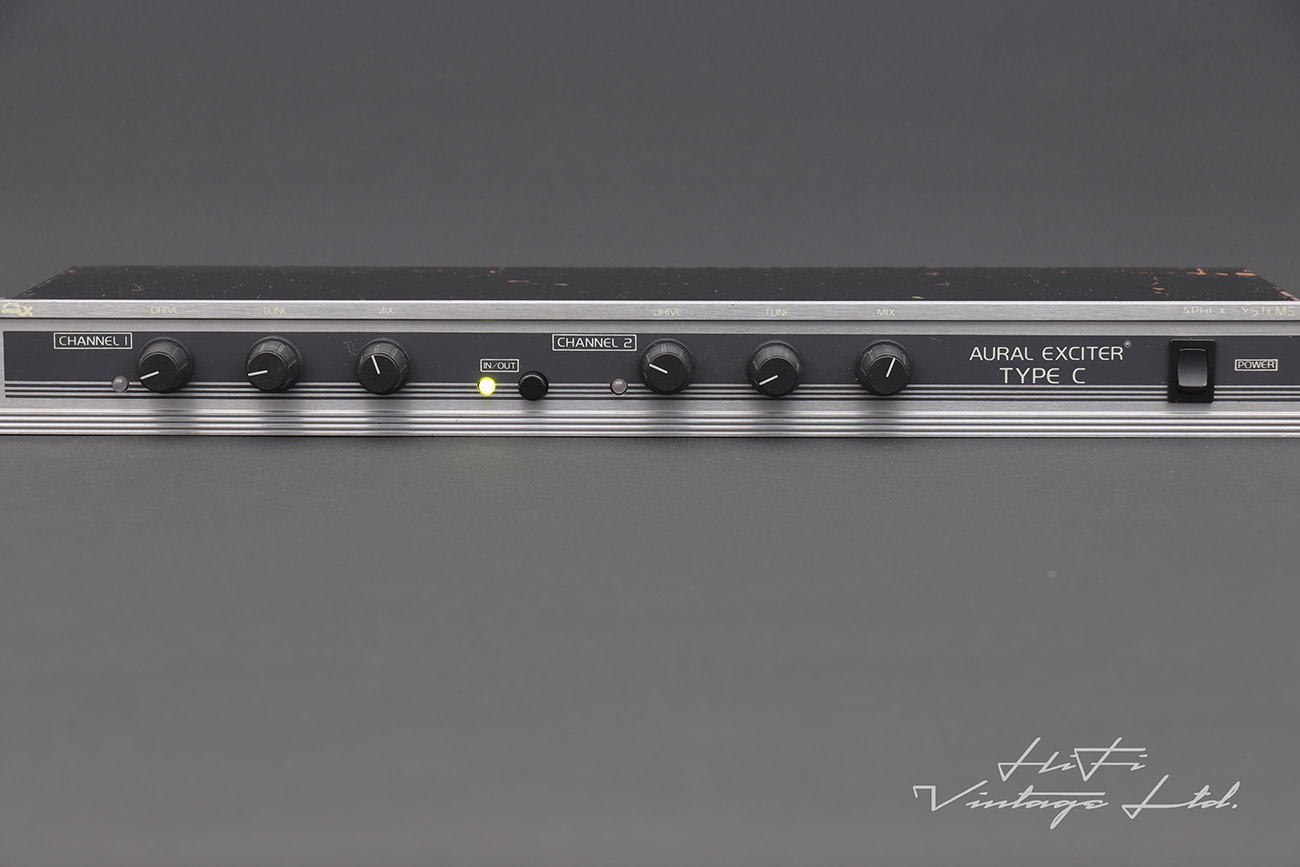

Aphex Aural Exciter Type C Model 103A

Aphex Aural Exciter Type C Model 103A is a classic audio processing unit known for its ability to enhance the clarity, presence, and overall brightness of audio signals. Rack Mount unit.

Specification:

  • Frequency responce: +0, -1/2dB, 10Hz-50kHz
  • THD, 20Hz-20kHz, MAX I/O: 0,02%
  • Noise: -100dBv (MIX at minimumsetting)
  • Filter Tune Range: 1kHz-5kHz
  • Operating Level: -10dB
  • MAX I/O: +12dB
  • Input Impedance: 47kOhms
  • Output Impedance: 150Ohms

Dimensions: 432 x 25 x 127 mm
Weight: 2kg

Years of manufactured: 1985 – 1992

STATUS: Out of stock
